NC3MX-HD

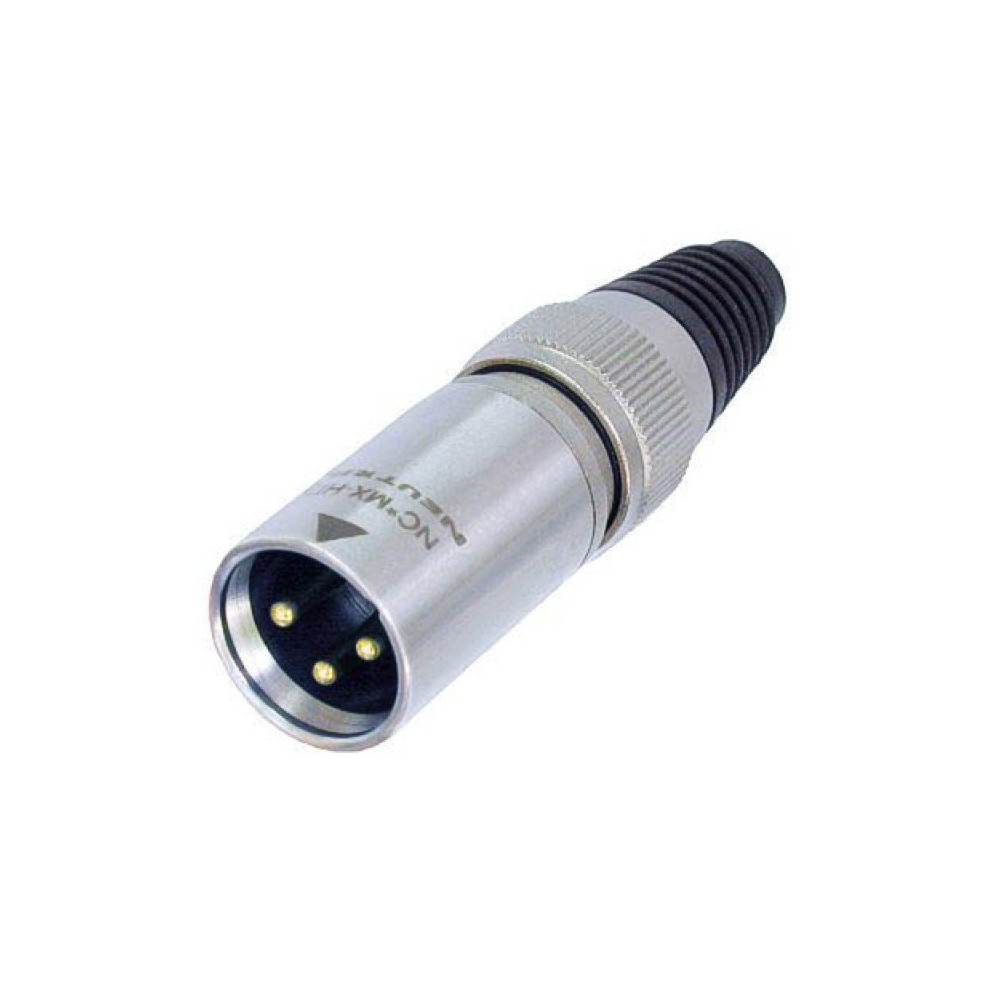

Connettore XLR maschio a 3 poli volante "Heavy Duty". Serie X-HD con involucro interamente in metallo e contatti placati oro per applicazioni in esterno. Protezione alla polvere e all'acqua, IP 65. Il pressacavo di tipo mandrino e la boccola passacavo in gomma morbida consentono lo scarico della trazione del cavo. Ideale abbinamento con i connettori volanti Serie X-HD o da pannello MPR-HD.

Specifiche Tecniche:

Features & Benefits

• "Heavy duty" cable connector for outdoor use
• All metal design
• Male connector in stainless steel
• NC*MX-HD mates with NC*FX-HD cable connector
• Dust and water protected according IP 65 in mated condition
• Gold contacts
• Chuck type strain relief system for secure clamping of cables
• Boot with rubber gland gives high protection against bending stresses

Product

• Title NC3MX-HD
• Connection Type XLR
• Gender male

Electrical

• Capacitance between contacts ≤ 4 pF
• Contact resistance ≤ 3 mohm
• Dielectric strength 1,5 kV_DC
• Insulation resistance > 10 Gohm (initial)
• Rated current per contact 16 A
• Rated voltage < 50 V

Mechanical

• Cable O.D. 3.5 - 8.0 mm
• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 1000 mating cycles
• Wiresize max. 2.5 mm²
• Wiresize max. 14 AWG
• Wiring Solder contacts
• Locking device Latch lock

Material

• Boot Polyurethan
• Bushing Stainless steel
• Contact plating 0.2 µm Au hard alloy over 2 µm Ni
• Contacts Brass (CuZn39Pb3)
• Insert Polyamide (PA 6.6 30 % GR)
• Locking element Stainless steel
• Shell Stainless steel
• Shell plating none
• Strain relief Polyacetal (POM)
• Sealing jacket EPDM

Environmental

• Approvals UL
• Flammability UL 94 HB
• Standard compliance IEC 61076-2-103
• Protection class IP 65
• Solderability Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
