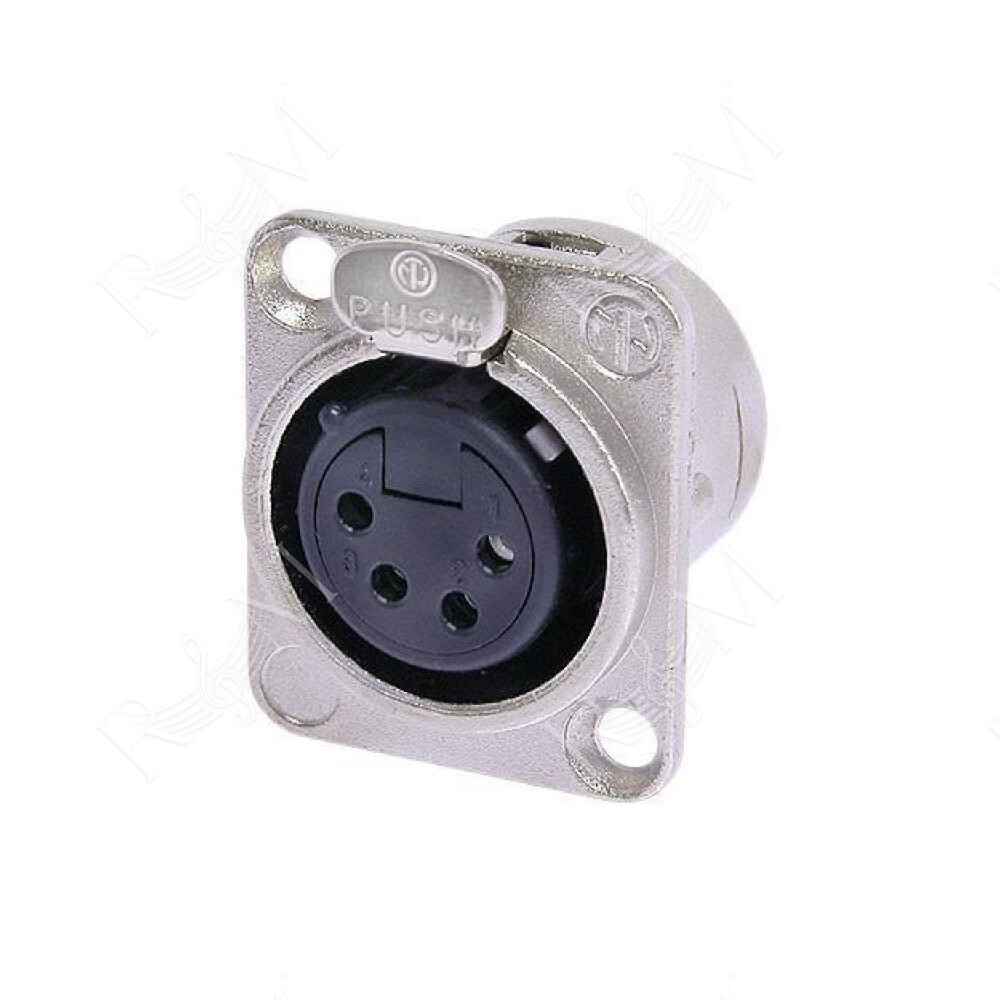

NC4FD-L-1

Features & Benefits

• Robust "D" metal shell
• Standardized D sized 24 mm panel cutout
• Solder cups on 3 - 7 pole version

Product

• Title NC4FD-L-1
• Connection Type XLR
• Gender female

Electrical

• Capacitance between contacts ≤ 7 pF
• Contact resistance ≤ 5 mohm
• Dielectric strength 1,5 kV_DC
• Insulation resistance > 10 Gohm (initial)
• Rated current per contact 10 A
• Rated voltage < 50 V

Mechanical

• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 1000 mating cycles
• Wiresize max. 1.5 mm²
• Wiresize max. 16 AWG
• Wiring Solder contacts
• Locking device Latch lock
• Chassis shape D

Material

• Contact plating 2 µm Ag over 2 µm Ni
• Contacts Brass (CuZn39Pb3)
• Insert Polyamide (PA 6.6 30 % GR)
• Locking element Steel Ck67
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel

Environmental

• Approvals UL
• Flammability UL 94 HB
• Standard compliance IEC 61076-2-103
• Protection class IP 40
• Solderability Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
