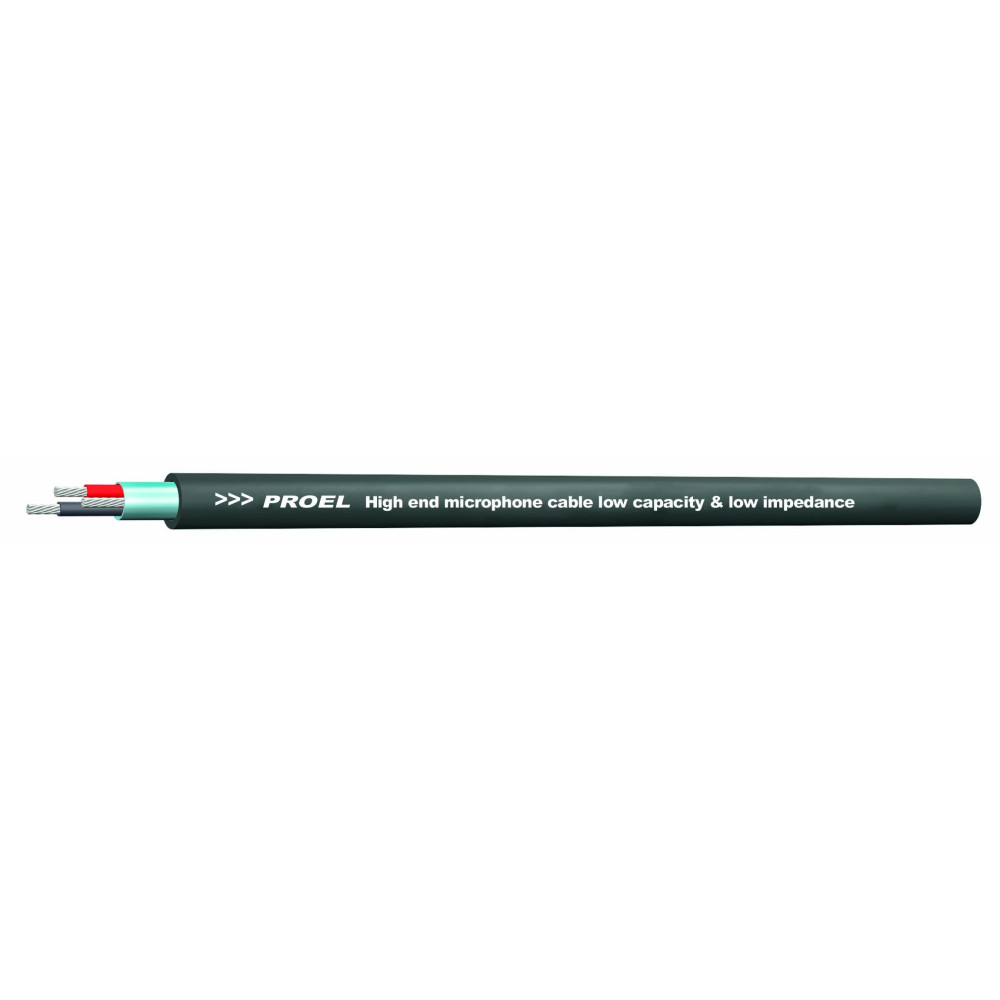

Cavo bilanciato digitale - per microfono e apparati audio con guaina esterna robusta e flessibile - O.F.C. (Oxygen Free Copper -

Cavo bilanciato digitale - per microfono e apparati audio con guaina esterna robusta e flessibile - O.F.C. (Oxygen Free Copper - Sezione 2 x 0.22 mm2).Utilizzabile anche per la trasmissione del segnale DMX.

• Application fields: Amplifiers connections / DMX connections / Mic-Mixer connections / Microphone connections / Speakers
• Conductors: Tinned copper - 24 AWG 7 x 0.20 mm (0.22 mm²)
• Insulation: PEE Ø 1.60 mm
• Shield: PET/Aluminium tape 100%%
• Jacket: Flexible PVC 64 shore Ø 4.70 mm
• Colour: Black
• Drain wire: Tinned copper 24 AWG 7 x 0.20 mm (0.22 mm²)
• Electrical capacitance: 85pF/m (conductor/Shield) @ 1 KHz
• Nominal impedance: 110 Ohm
• Velocity of propagation: 76 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < <50 V AC/li>
• < <75 V DC/li>
• Weight: 23.79 Kg/Km
• Minumum bending radius: 20 x cable section radius
• Packaging:
• 100 m carton reel (HPC222BK)
• 300 m carton reel (HPC222BKR300
