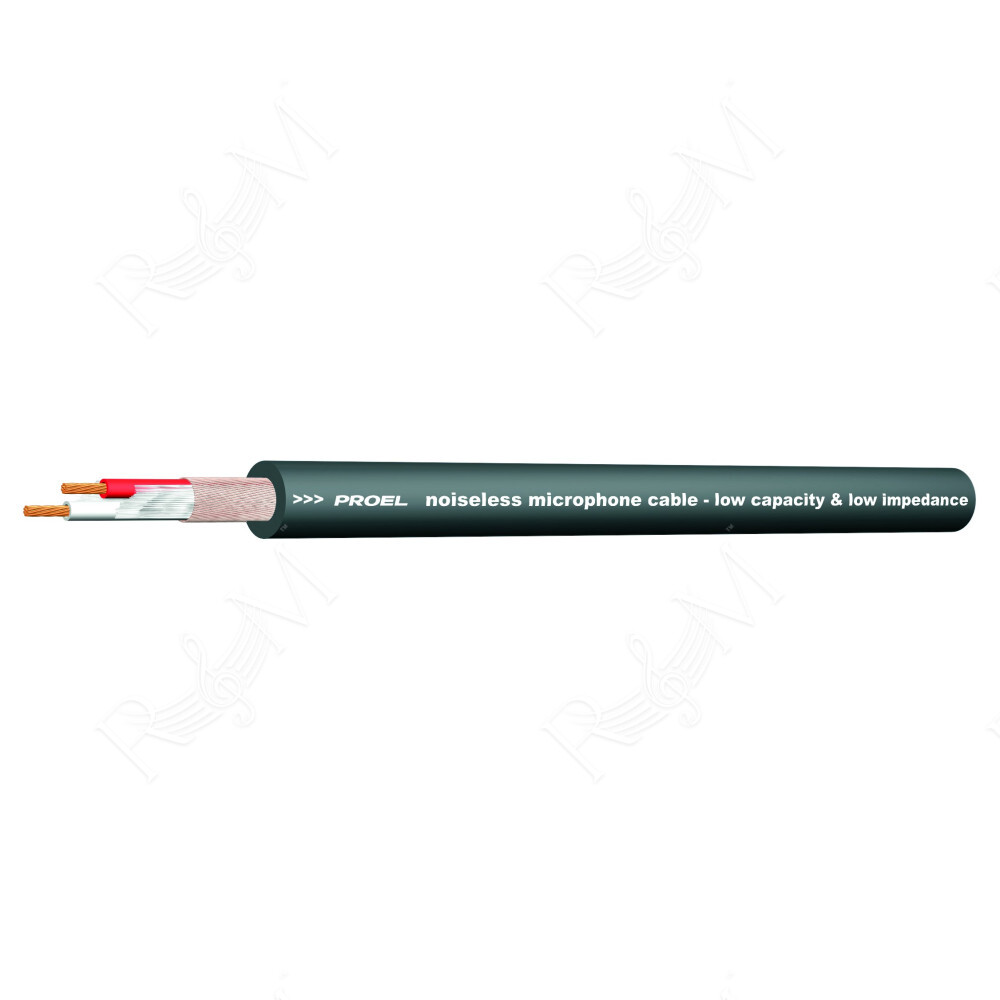

Cavo bilanciato per microfono con guaina esterna flessibile non propagante la fiamma - LSZH.

Cavo bilanciato per microfono con guaina esterna flessibile non propagante la fiamma - LSZH - idoneo per collegamenti microfonici, impianti audio, sale di registrazione, sistemi HI-FI per auto e domestici. - O.F.C. (Oxygen Free Copper) - Sezione 2 x 0.25 mm².

• Application fields: Installation / Recording studios / Microphone connections
• Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.25 mm²)
• Insulation: LDPE Ø 1.60 mm natural/red
• Shield: Spiral bare copper > 70%
• Jacket: Flame and fire retardant thermoplastic material LSZH - Hardness 45 shore Ø 6.30 mm
• Color: Black
• Electrical capacitance:
• 45 pF/m (conductor/conductor) @ 1 KHz
• 100 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 46 Kg/Km
• Minumum bending radius: 20 x cable section radius
• Packaging: 100 m carton reel
• Packaging: 300 m wooden reel (HPC210HFR300)
