NC3MD-LX-HA

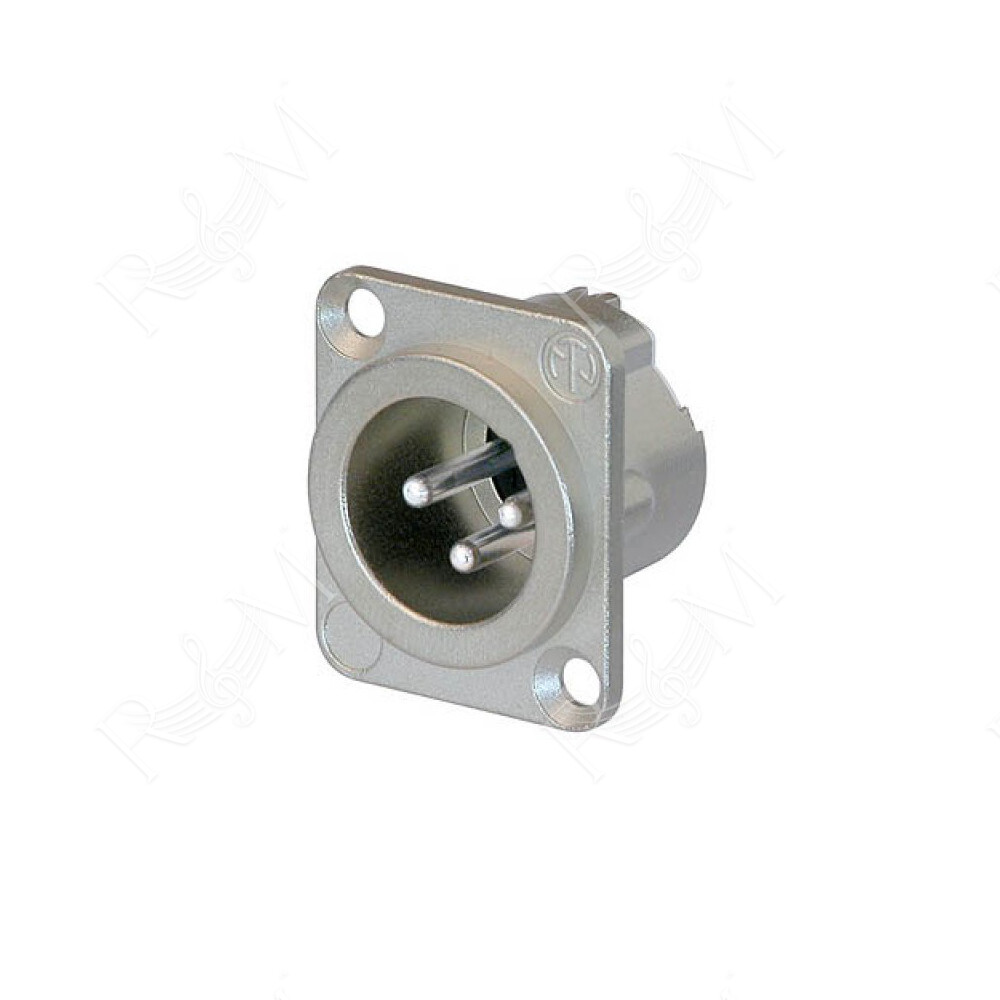

Connettore XLR maschio a 3 poli da pannello con terminali a crimpare (Standard B-Crimp). Serie DLX con corpo compatto interamente in nickel e contatti in argento con una doppia schermatura che fornisce eccellente schermatura e protezione RF. Ideale abbinamento con i connettori Neutrik EMC.

Specifiche Tecniche:

Features & Benefits

• All metal housing offers best overall RF protection and electromagnetic shielding
• Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
• Gastight and Solderless connection (RoHS compliant)
• New duplex ground contact for excellent contact integrity between chassis and cable connector
• Male connector's retention bar replaces plastic design with all metal version improving pull-out force
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions

Product

• Title NC3MD-LX-HA
• Connection Type XLR
• Gender male

Electrical

• Capacitance between contacts ≤ 4 pF
• Contact resistance ≤ 5 mohm
• Dielectric strength 1,5 kV_DC
• Insulation resistance > 10 Gohm (initial)
• Rated current per contact 1 A
• Rated voltage < 50 V

Mechanical

• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 1000 mating cycles
• Wiresize 0.22 - 0.34 mm²
• Wiresize 24 - 22 AWG
• Wiring Crimp contacts
• Locking device Latch lock
• Chassis shape D

Material

• Contact plating 2 µm Ag over 2 µm Ni
• Contacts Brass (CuZn35Pb2)
• Insert Polyamide (PA 6.6 30 % GR)
• Locking element Steel Ck67
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel

Environmental

• Flammability UL 94 HB
• Standard compliance IEC 61076-2-103
• Protection class IP 40
• Temperature range -30 °C to +80 °C
