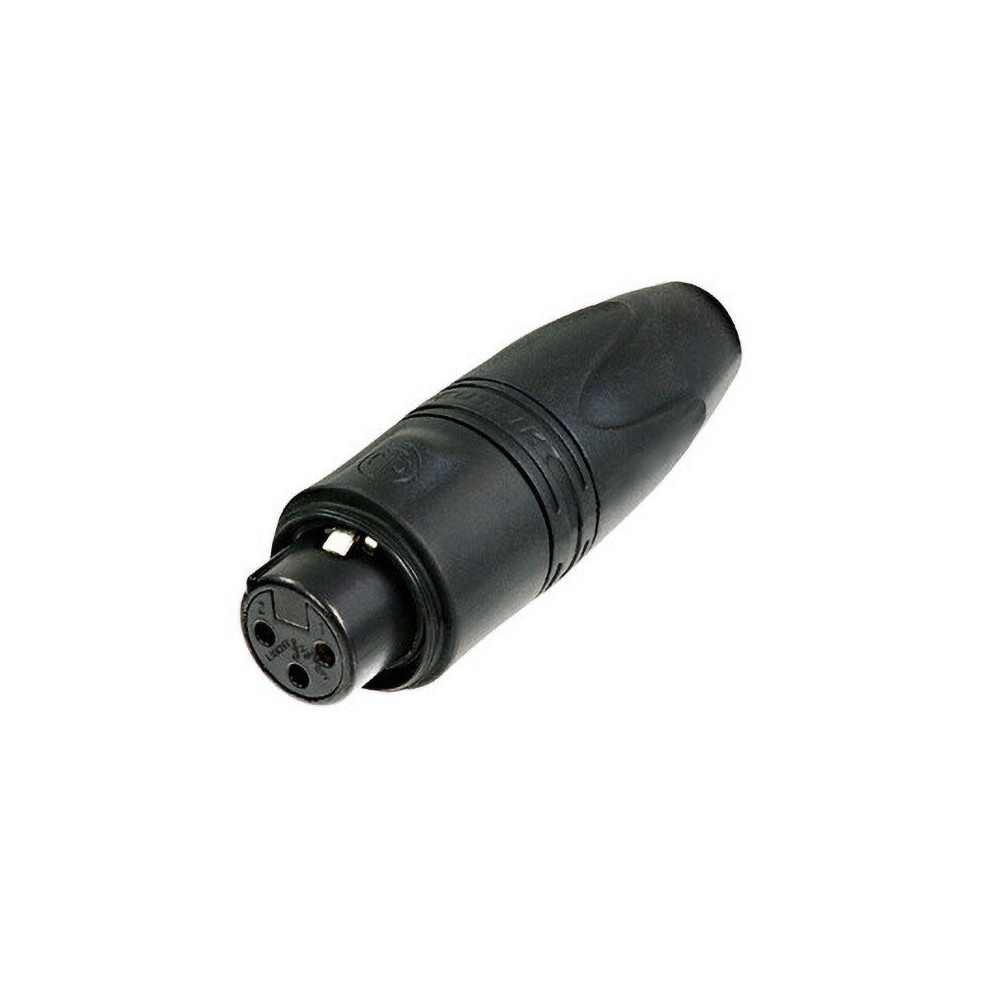

NC3FXX-HD-B-D

• Dust and water ingress sealing:
  • IP67 in combination with HD cable connector NC3MXX-HD*
  • IP67 in combination with HD chassis connector NC3MPR-HD
• Rubber sealing jacket protects against water ingress and mechanical shock
• Gold contacts

Product

• Title NC3FXX-HD-B-D
• Connection Type XLR
• Gender female

Electrical

• Capacitance between contacts ≤ 4 pF
• Contact resistance ≤ 3 mohm
• Dielectric strength 1,5 kV_DC
• Insulation resistance > 10 Gohm (initial), > 1 GΩ (after damp heat test)
• Rated current per contact 16 A
• Rated voltage < 50 V

Mechanical

• Cable O.D. 6.0 - 8.0 mm
• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 1000 mating cycles
• Wiresize max. 2.5 mm²
• Wiresize max. 14 AWG
• Wiring Solder contacts
• Locking device Latch lock

Material

• Boot Polyurethan
• Contact plating 0.2 µm Au hard alloy over 2 µm Ni
• Contacts Bronze (CuSn8)
• Insert Polyamide (PA66)
• Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel
• Strain relief Polyacetal (POM)
• Sealing jacket EPDM

Environmental

• Flammability UL 94 V-0
• Standard compliance IEC 61076-2-103
• Solderability Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
