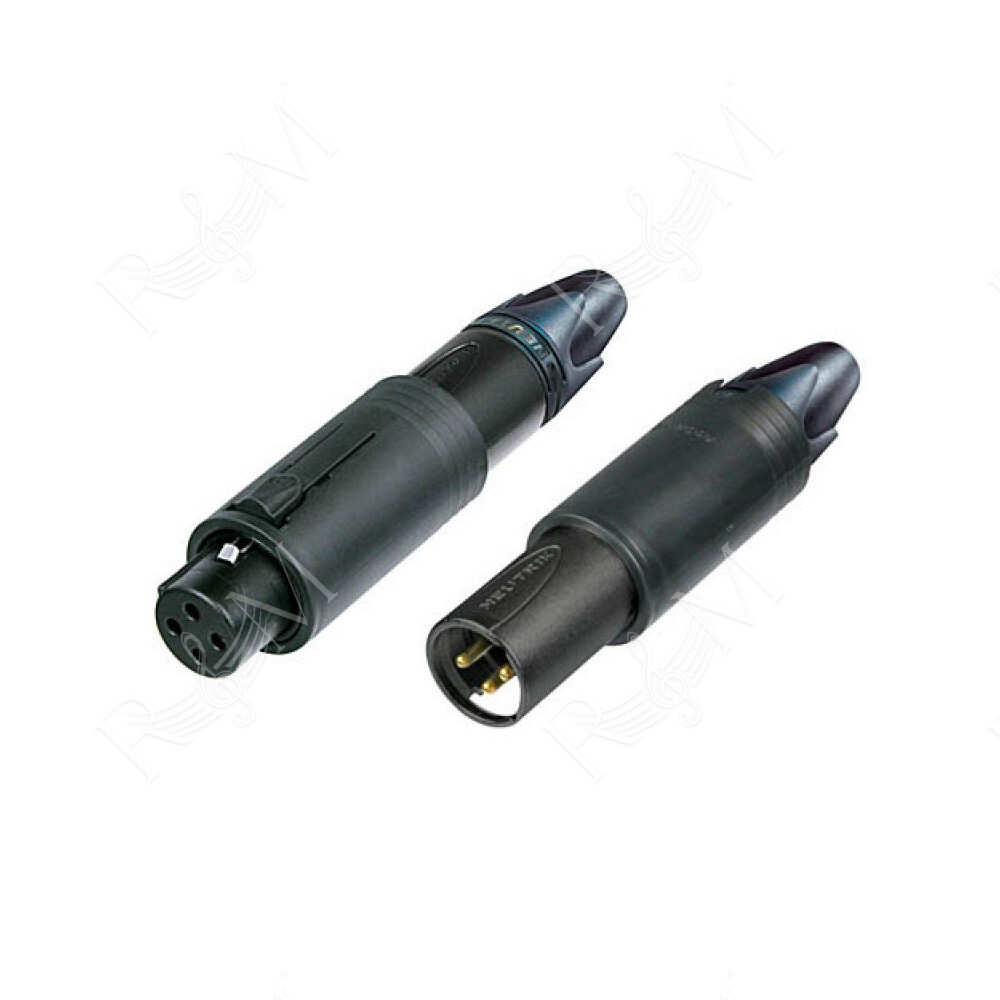

NC3FM-C-B

Connettore XLR a 3 poli volante maschio o femmina selezionabili. È il primo connettore del suo genere in un unico involucro di metallo colore nero. La selezione avviene semplicemente facendo scorrere l'alloggiamento avanti e indietro. Serie ConvertCON con caratteristiche della Serie XX con robusto chassis in metallo colore nero contatti placati oro. Ideale come kit di emergenza.

Specifiche Tecniche:

4Features & Benefits

• World's first unisex XLR
• 3 pole male and female cable connector in one housing
• Easy selectable gender - converted by sliding housing back and forth
• Substitute adapters, ideal as an emergency kit
• With all benefits of the XLR XX series
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Product

• Title NC3FM-C-B
• Connection Type XLR
• Gender female

Electrical

• Capacitance between contacts ≤ 4 pF
• Contact resistance ≤ 3 mohm
• Dielectric strength 1.5 kV_DC
• Insulation resistance > 2 Gohm (initial)
• Rated current per contact 16 A
• Rated voltage <50 V

Mechanical

• Cable O.D. 3.5 - 8.0 mm
• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 1000 mating cycles
• Wiresize max. 2.5 mm²
• Wiresize max. 14 AWG
• Wiring Solder contacts
• Locking device Latch lock

Material

• Boot Polyurethan
• Contact plating 0.2 µm Au
• Contacts Brass (CuZn39Pb3) (male)
• Insert Polyamdie (PA 6.6 30 % GR)
• Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell Black chromium
• Shell plating Nickel
• Strain relief Polyacetal (POM)

Environmental

• Flammability UL 94 HB
• Standard compliance IEC 61076-2-103
• Protection class IP 40
• Solderability Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
