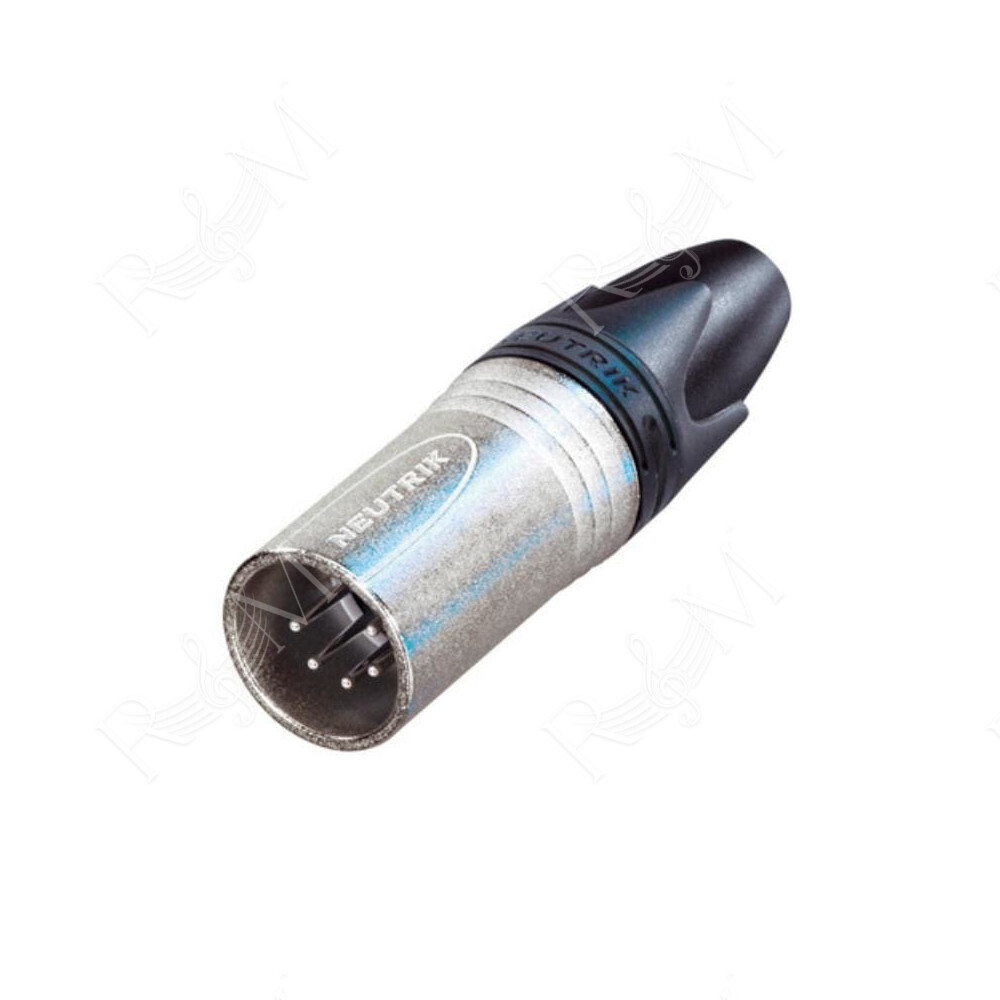

NC5MXXD

• Male connector with improved locking recess without "window", more stringent housing increases durability
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well protected against any damage

Electrical

• Capacitance between contacts ≤ 7 pF
• Contact resistance ≤ 3 mohm
• Dielectric strength 1,5 kV_DC
• Insulation resistance > 10 Gohm (initial)
• Rated current per contact 7,5 A
• Rated voltage < 50 V

Mechanical

• Cable O.D. 3.5 - 8.0 mm
• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 1000 mating cycles
• Wiresize max. 1.0 mm²
• Wiresize max. 18 AWG
• Wiring Solder contacts
• Locking device Latch lock

Material

• Boot Polyurethan
• Contact plating 2 µm Ag over 2 µm Ni
• Contacts Brass (CuZn39Pb3)
• Insert Polyamide (PA 66)
• Locking element Zinc diecast (ZnAl4Cu1)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel
• Strain relief Polyacetal (POM)

Environmental

• Flammability UL 94 V-0
• Standard compliance IEC 61076-2-103
• Protection class IP 40
• Solderability Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
