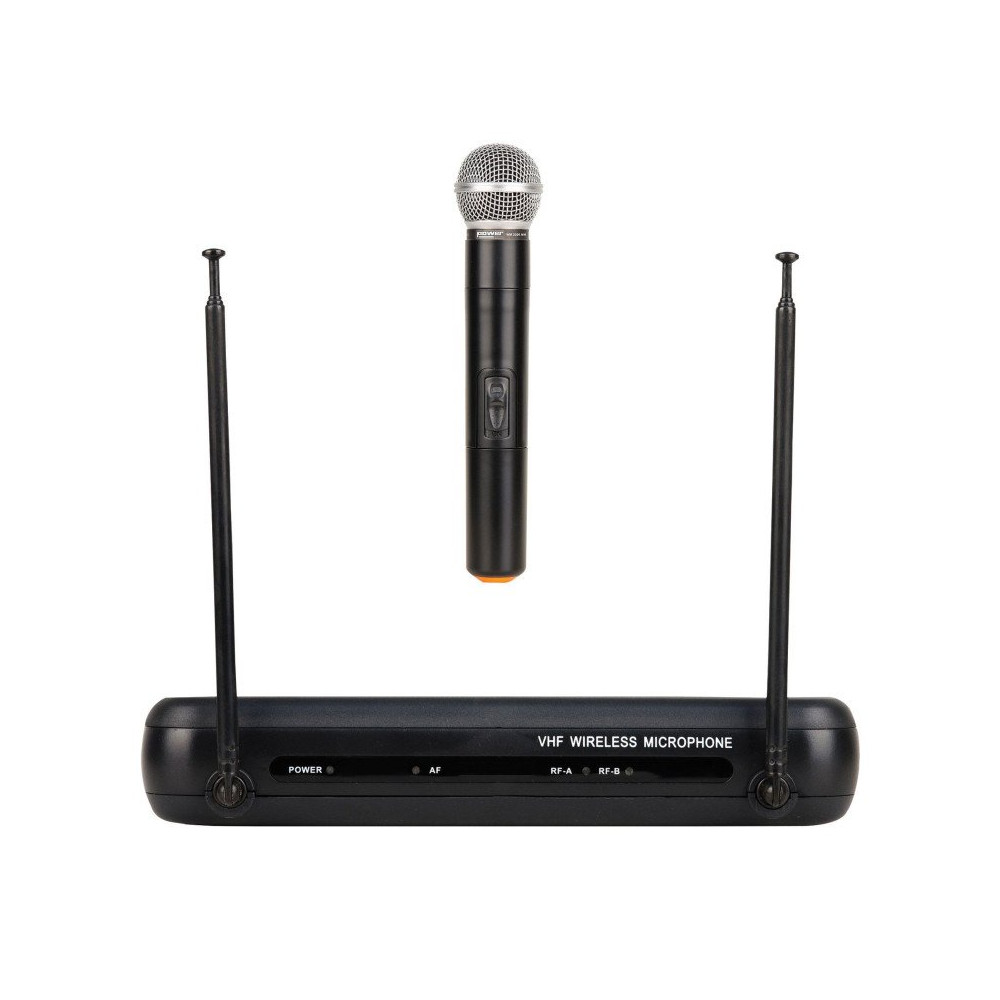

WM 2200 MH

Feature of the VHF microphone

- Output power: <30 m W (max.)
- Emissions: more than 45 dB
- Integrated antenna
- Cardioid dynamic microphone
- Standard battery 9 V⎓, 25 mA
- Battery life: 8 hours (continuous operation)
- Dimensions (H x W): 247 x 52 mm
- Weight: 227 g

Receiver characteristics

- Frequencies: 178.5 MHz
- Power supply: 12 - 18 V⎓ or 220 V∿ / 50 Hz depending on the model
- Power consumption: 3 W
- S/N ratio: >80 dB
- Sensitivity: 60 dB S/N (12 dBu)
- Performance level: 0 - 2 V

Global system

- Frequency stability: ±0.005%
- Maximum deviation: ±10 kHz
- Frequency response: 40 Hz - 20 kHz
- S/N ratio: >80 dB
- Dynamics range: >80 dB
- THD <5%
