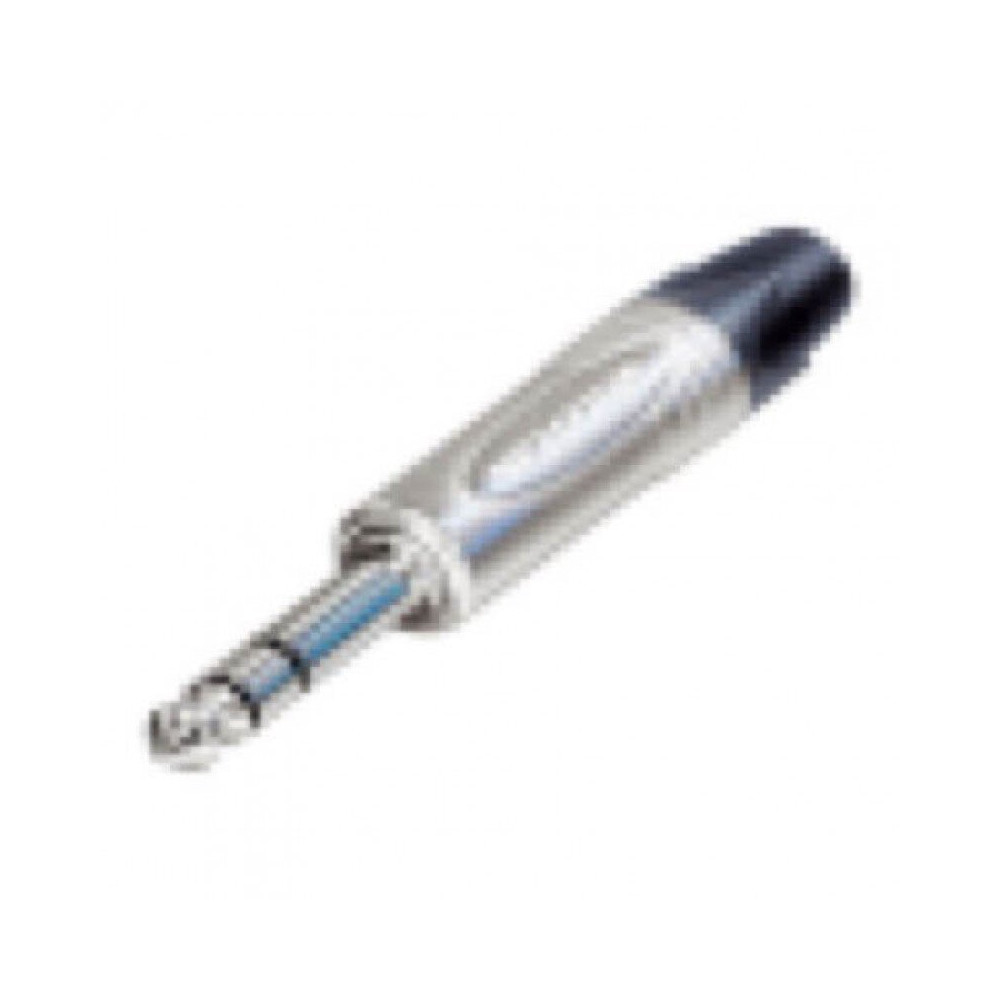

NP3X-D

Connettore Jack stereo maschio 6,3 mm volante, disassemblato. Serie PX, robusto ma compatto corpo in metallo e contatti nickel con serracavo tipo mandrino. Le dimensioni ridotte consentono utilizzi in qualsiasi applicazione dove sia richiesta elevata densità. Confezione sfusa da 100 pezzi.

Specifiche Tecniche:

Features & Benefits

• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Proven chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Product

• Title NP3X-D
• Connection Type Plug
• Gender male

Electrical

• Contact resistance depends on mating connector mohm
• Dielectric strength 1 kV_DC
• Insulation resistance > 2 Gohm (initial)
• Rated current per contact depends on mating connector A
• Rated voltage < 50 V

Mechanical

• Cable O.D. 4 - 7 mm
• Lifetime > 1000 mating cycles
• Wiresize 1 mm²
• Wiresize 18 AWG
• Wiring Solder contacts

Material

• Bushing Polyacetal (POM) + PU
• Contact plating 2 µm Ni (Su)
• Contacts Brass (CuZn39Pb3)
• Insert Polyamide (PA 6.6 30 % GR)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel
• Strain relief Polyacetal (POM)

Environmental

• Standard compliance IEC 60603-11 / EIA RS-453
• Solderability Complies with IEC 68-2-20
• Temperature range -20 °C to +65 °C
