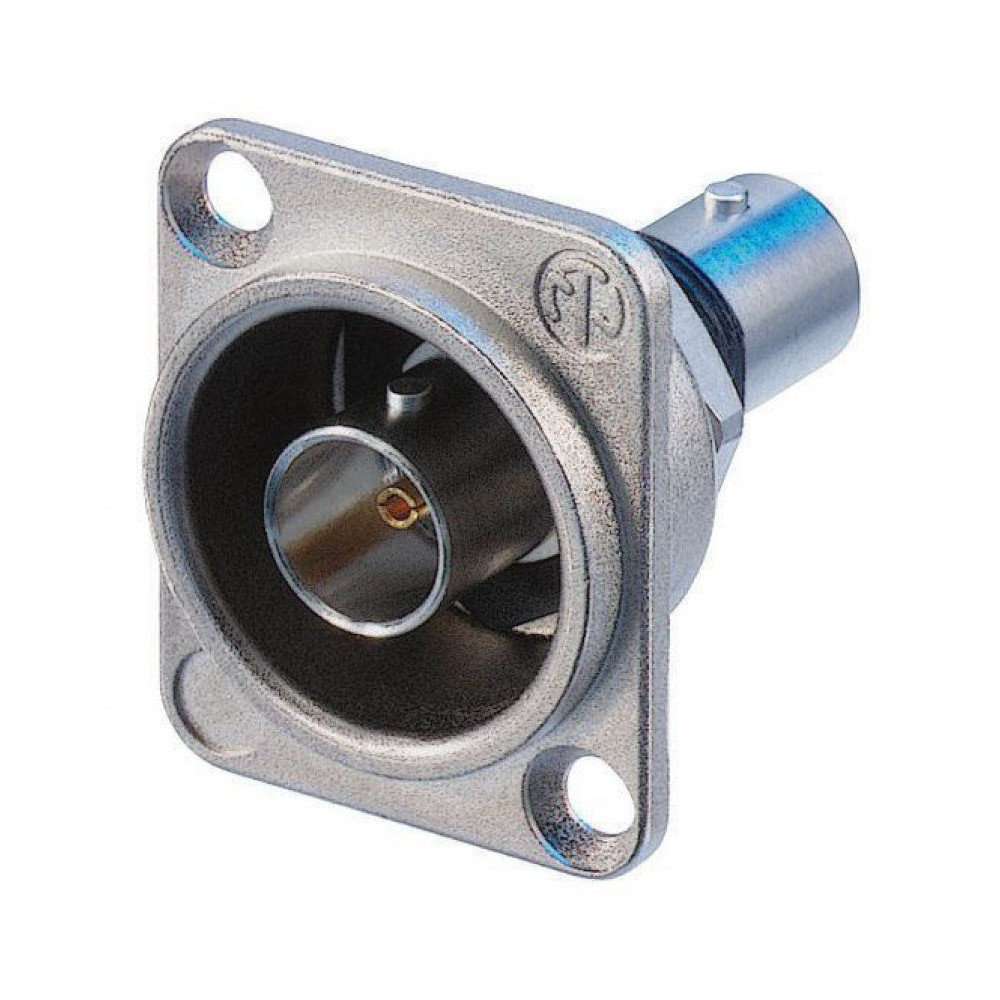

NBB75DFI

Features & Benefits

• Gold plated cage type center contact
• True 75 ohm design meets the stringent HD requirements
• Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
• Standard D-shape housing - provides flush mounting and protection from demage
• Color coding possible

Product

• Title NBB75DFI
• Connection Type BNC 75 ohm
• Gender female

Electrical

• Signal Type HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
• Contact resistance ≤ 3 m ohm (inner)
• Contact resistance ≤ 2 m ohm (outer)
• Dielectric strength 1,5 kV_DC
• Impedance 75 ohm
• Insulation resistance > 5 Gohm
• Rated voltage <50 V
• VSWR ≤1.03/>37 dB up to 1 GHz
• ≤1.05/>32 dB up to 2 GHz
• ≤1.08/>28 dB up to 3 GHz

Mechanical

• Insertion force < 25 N
• Lifetime > 1000 mating cycles
• Wiresize
• Locking device Bayonett
• Mounting direction Front mounting
• Chassis shape D

Material

• Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
• Insert PTFE
• Shell Polyacetal (POM) (Insulation Sheell)
• Shell plating Optalloy®
• D-Shape housing Zinc diecast (ZnAl4Cu1) gal Ni plating

Environmental

• Temperature range -30 °C to +85 °C
