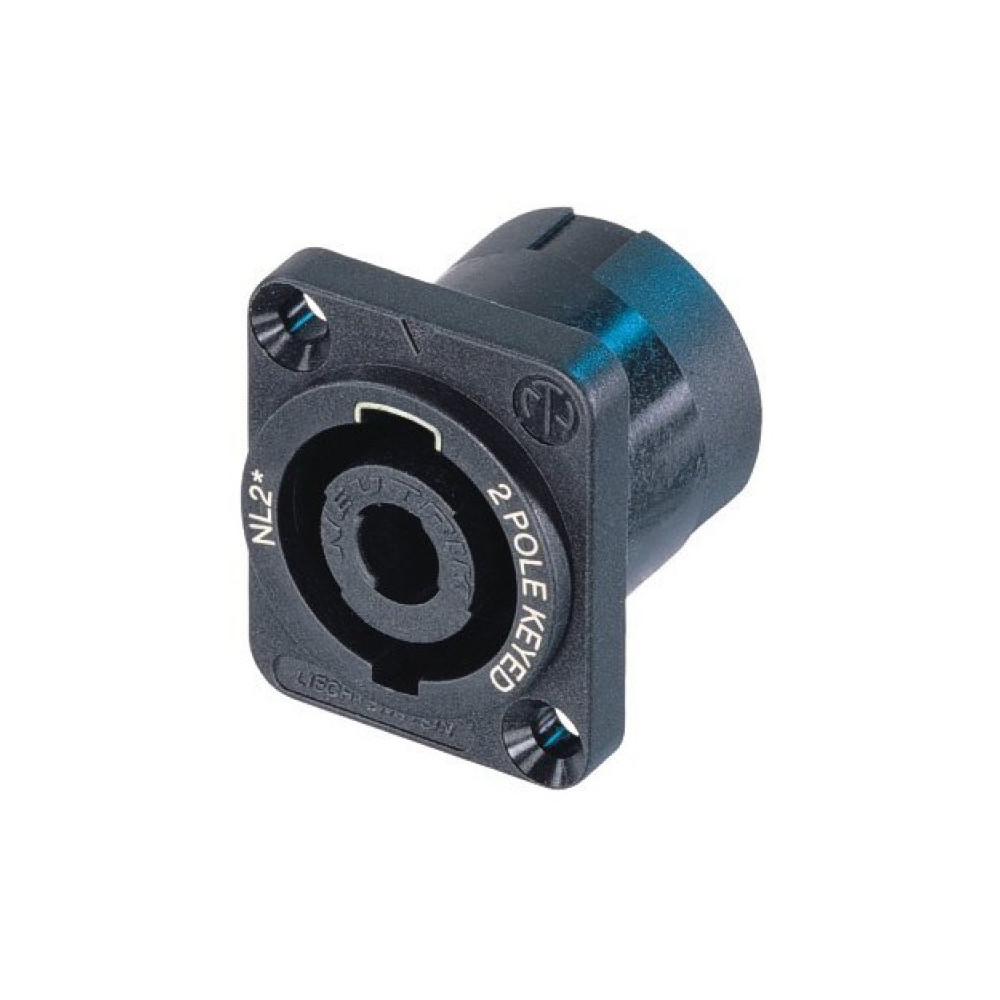

NL2MP

Connettore SpeakON a 2 poli maschio da pannello con terminali a lamella piatta . Standard riconosciuto per i collegamenti degli altoparlanti e amplificatori. Robusto, versatile, semplice da collegare e con un solido sistema di bloccaggio che crea il contatto solo al suo completo aggancio. Non compatibile con i connettori speakON volanti a 4 poli.

Specifiche Tecniche:

Features & Benefits

• Current rating 30 A rms
• Glass reinforced materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal insert in locking area
• Airtight design - optimized for speaker applications

Product

• Title NL2MP
• Gender male

Electrical

• Contact resistance ≤ 3 mΩ (after lifetime)
• Dielectric strength 4 kVdc (peak)
• Insulation resistance > 1 GΩ (after dampheat)
• Rated current per contact 30 A rms continuous
• Rated current per contact 40 A audiosignal, duty cycle 50 %
• Rated voltage 250 V ac
• Attention speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

• Lifetime > 5000 mating cycles
• Wiresize
• Locking device Quick Lock
• Chassis shape D
• Layout standard hole position, thru holes

Material

• Contact plating 4 µm Ag
• Contacts Bronze (CuSn6)
• Shell Polyamide (PA 6 30 % GR) black

Environmental

• Temperature range -30 °C to +80 °C
