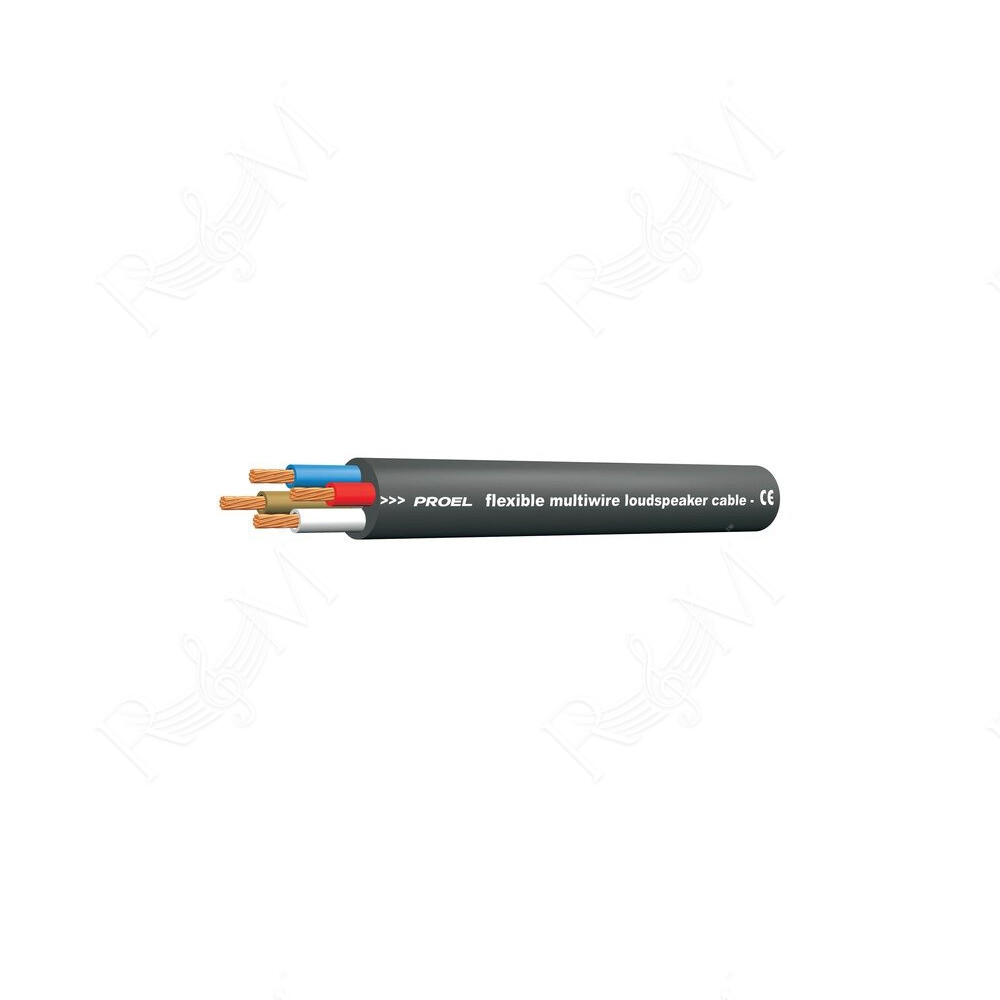

Cavo ultra-flessibile a 4 conduttori twistati per diffusori acustici passivi

Cavo ultra-flessibile a 4 conduttori twistati per diffusori acustici passivi - sezione 4 X 2,5 mm² - O.F.C. Colore nero

• Application fields: Passive speaker connections / sound reinforcement / studio installation / live
• Conductors: Bare copper 14 AWG = 48x0,25 mm - O.F.C.
• Lay up: four conductors twisted in short concentric layers
• Insulation: flexible PVC 3,45 mm
• Jacket: Ultra - Flexible PVC – 60 Shore
• Overall diameter: 11,00 mm
• Cable section: 2,5 mm²/AWG14
• Electrical Resistance @ 20°C: 7,4 Ohm/Km (conductor)
• Electrical Capacitance @ 1 KHz: 85 pF/mt (conductor/conductor)
• Operating temperature: -20°C / +70°C
• Minumum bending radius: 10 x overall diameter
• Weight: 204 Kg/Km
• Color: Black
• Packaging: 100 m wooden reel
