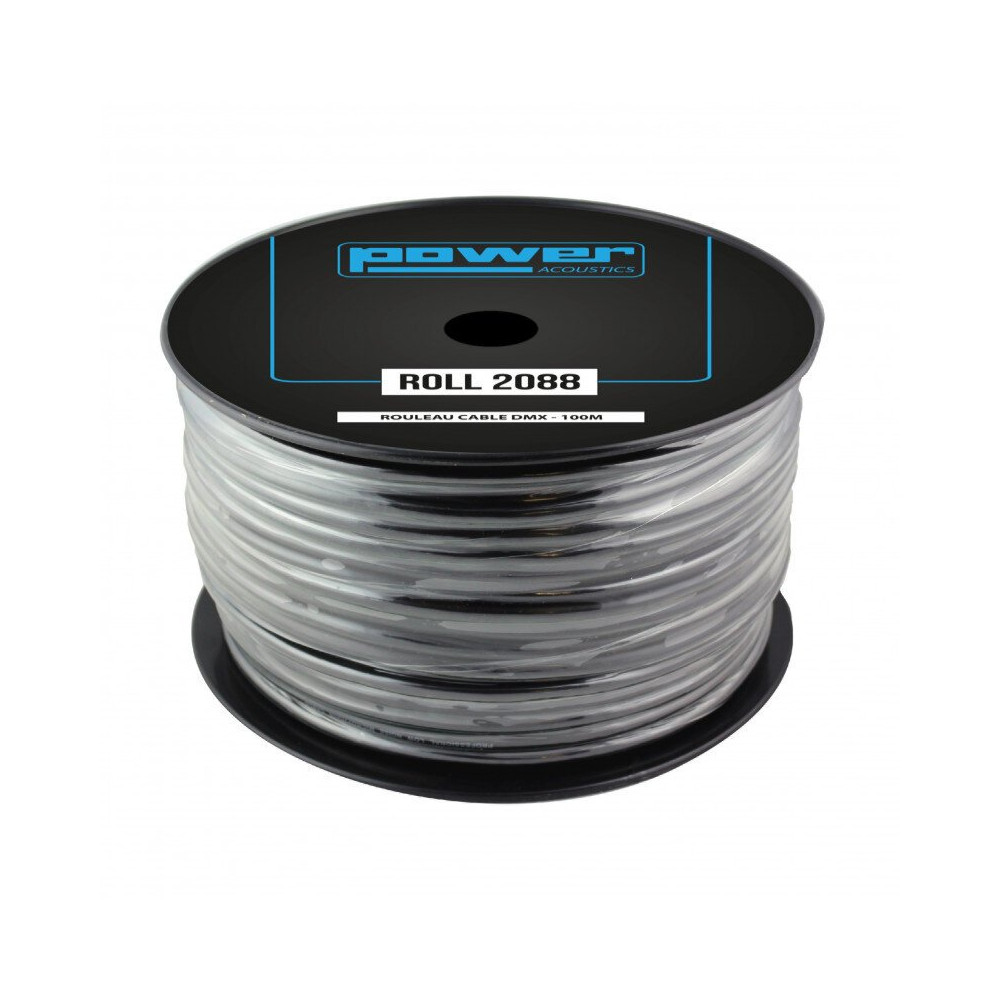

ROLL 2088

Technical specifications:

• 3 conductors DMX cable
• Impedance: 110 ohms
• PVC outer sheath
• Excellent conductivity
• Reel: 100 m
• Conductor sections: 2 x 0.34 mm²
• Number of strands: 19 x 0.15 mm
• Conductive material: copper
• Insulation: HDPE
• Covering: PVC, matt
• Overall diameter: 6 mm
• Operating temperature: -20 °C +70 °C
• Minimum curvature: 36 mm
• Conductor resistance: 52 Ω/km
• Conductor/conductor capacity: 50 pF/m @ 1 kHz
• Impedance: 110 Ω
• Insulation resistance: >10 GΩ/km
