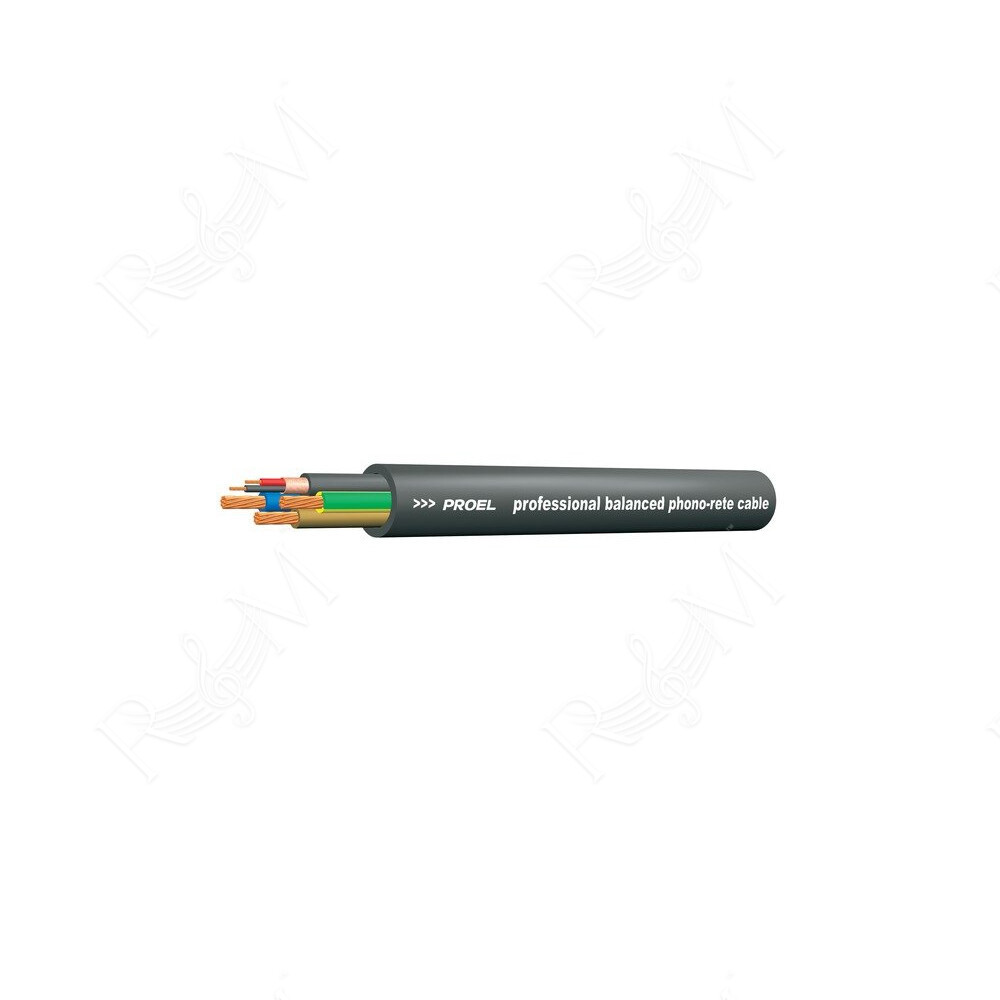

Cavo professionale combinato di tipo audio + alimentazione.

Cavo professionale combinato di tipo audio + alimentazione. Composto da una coppia audio bilanciata, twistata e individualmente isolata + cavo di alimentazione elettrica monofase. Guaina esterna in PVC flessibile antifiamma. Modelli disponibili: HPC501 - Audio 2 x 0.35 mm² + Power 3 x 1.50 mm² / HPC502 - Audio 2 x 0.35 mm² - Power 3 x 2.50 mm². Colore nero. Bobina in legno 100 m.

• Application fields: Audio connections
• Conductors: Bare copper
• Power: 16 AWG = 3x49x0.25 mm (2,5 mm2)
• Signal: 22 AWG = 2x11x0.20 mm (0.35 mm2)
• Insulation:
• Power: PVC 60 shore Ø 3.6 mm
• Signal: PVC HT105 Ø 1.50 mm
• Shield: Spiral red copper 4x16x0.12 90%
• Jacket: Flexible PVC 60 shore Ø 11.20 mm - Complying with CEI 20-35 (IEC 332.1)regulations
• Color: Black
• Electrical resistance: 7,4 Ohm/Km @ 20°C (Power) / 54.5 Ohm/Km @ 20°C (Signal)
• Electrical capacitance: 124 pF/m (signal) @ 1 KHz
• Operating temperature: -10°C / +60°C
• Working tension:
• Power: 300/500 V
• Signal: < 50 V AC / < 75 V DC
• Weight: 235 Kg/Km
• Minumum bending radius: 10 x cable section radius
• Packaging: 100 m wooden or wood fiber reel
