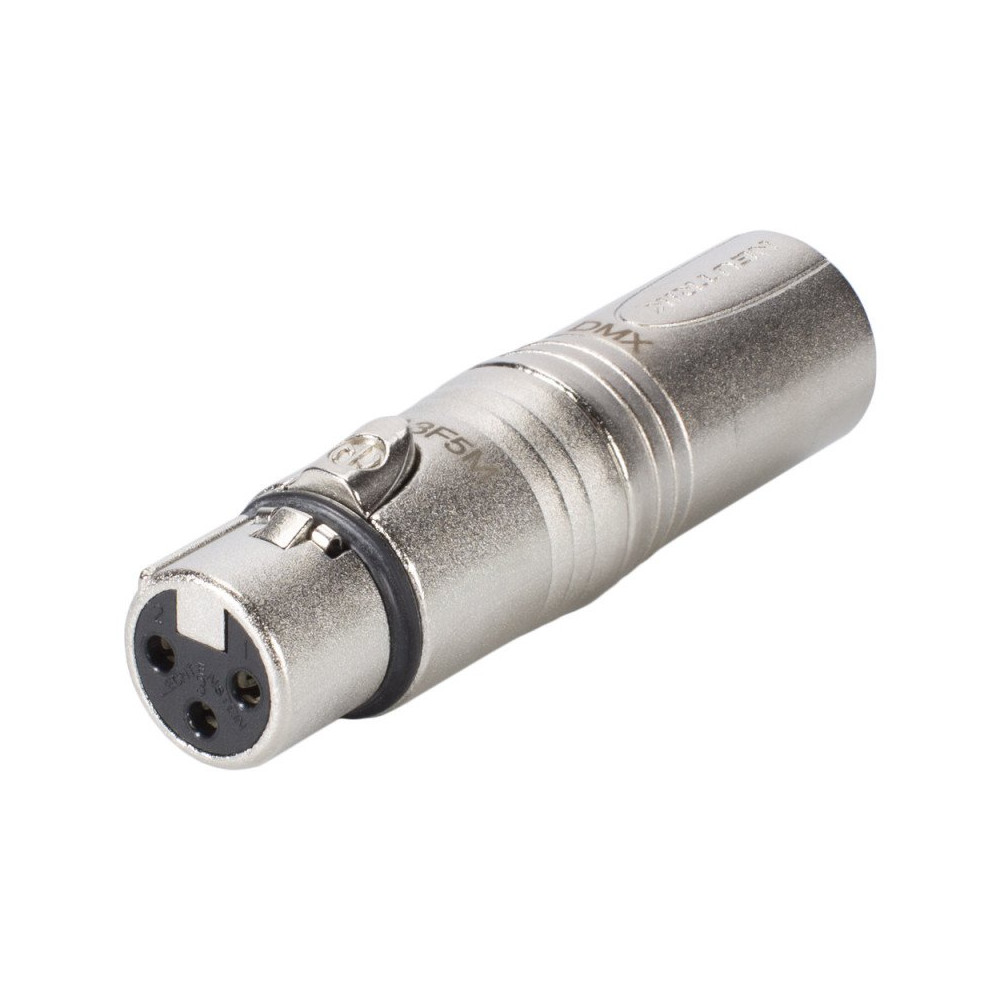

NA3F5M

Features & Benefits

• Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
• Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
• Professional look and compact space saving design, based on the XX Series
• Rugged diecast shell for best reliability

Product

• Title NA3F5M
• Connection Type Adapter

Electrical

• Contact resistance ≤ 3 mohm
• Dielectric strength 1,5 kV_DC
• Insulation resistance > 2 Gohm
• Rated current per contact 3 A

Mechanical

• Insertion force < 20 N
• Withdrawal force < 20 N
• Lifetime > 1000 mating cycles
• Wiresize
• Locking device Latch lock

Material

• Contact plating 2 µm Ag
• Contacts Bronze (CuSn6) (female)
• Insert Polyamide (PA 6.6 30 % GR)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel

Environmental

• Temperature range -30 °C to +80 °C
